700mm 40 feet small wings

This product is a 700 expansion box. This product is mainly to save transportation space and reduce transportation costs. The openstate of this product can increase the usable area by 6.9 times. Th-e disadvantage is that the bathroom cannot be integrated inside. lfthe customer needs to install the bathroom, it can only be achievecthrough secondary construction at the site of use.

ATTRIBUTE

 Customised exterior colours available Customised product sizes are available Collapsible houses Product life up to 20 years 40HQ container holds 6 sets Fire protection class A

Structure material

	Structure material	Galvanized cold-rolled steel (SGH340) fully galvanizedsquare tube frame
	Coating	Electrostatic spraying/Straight white plastic powder spraying
	Thermal insulation structure	65mm advanced bamboo charcoal fiber insulation compositeboard
	Box top material	T50mm thick polystyrene color steel plate/Corrugated boardt0.4 mm
	Floor material	Fireproof cement fiber floor 18mm thick
	Fire rating	Flame retardant class B1
	Ground load	1.5KN/m2
	Roof load	1.5KN/m2
	Wind load	0.6KN/m2
	Insulation factor	>R3.5
	Structure life	20years

Opening Method

Transport Display

Product Model

Expand the size

Internal dimensions

Folding dimensions

Loading capacity

Size/m2

L5900*W4800*H2480mm

L5460*W4640*H2240mm

L5900*W700*H2480mm

A 40HQ Container can hold 6 sets

27.5

700mm 40-foot double-wing expansion box

Expand the size

Internal dimensions

Folding dimensions

Loading capacity

Size/m2

L11800*W4800*H2450mm

L11540*W4720*H2200mm

L11800*W700*H2450mm

A 40HQ Container can hold 2 sets

57

Interior display·Living room display

Interior display.Bedroom display

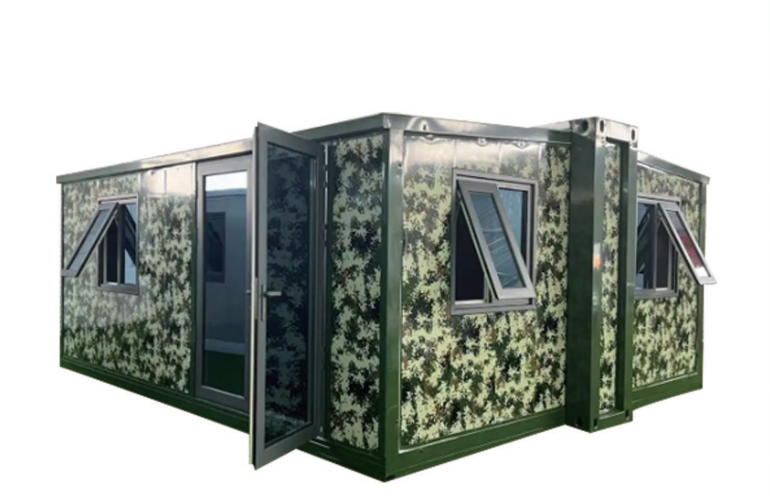

Appearance Display

700mm 20-foot double-wing expansion box

700mm 20-foot double-wing expansion box color-coated coil appearance

700mm 40-foot double-wing expansion boX
